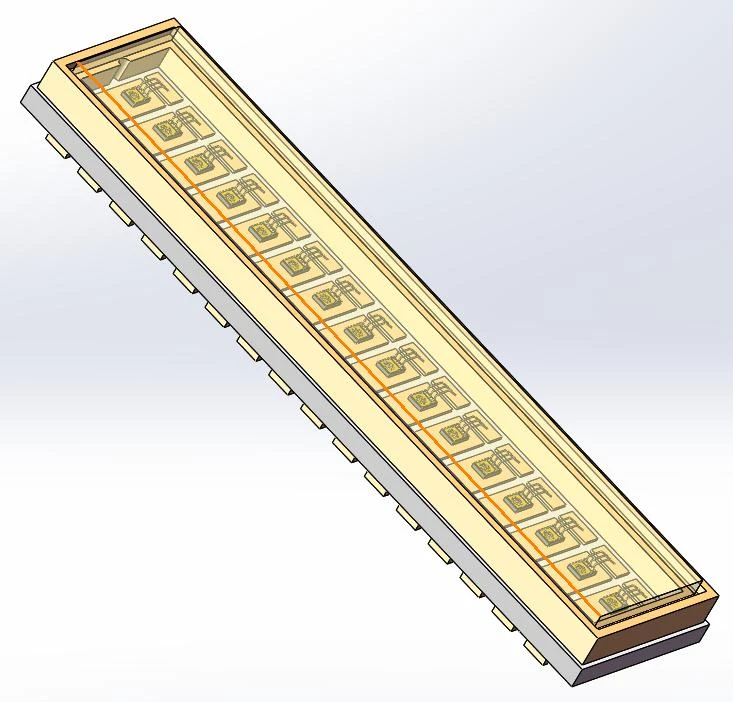

The DMP1KKM is a high-density, multi-channel VCSEL (Vertical-Cavity Surface-Emitting Laser) array engineered for the next generation of 3D sensing and LiDAR applications. By integrating a 16-channel linear configuration into a high-thermal-conductivity ceramic architecture, this module provides the optical power density and reliability required for mission-critical environmental mapping.
Size(mm): 17.3*4.0*1.7mm
AlN ceramic package
Peak wavelength 905nm
High reliability
The DMP1KKM is a high-density, multi-channel VCSEL (Vertical-Cavity Surface-Emitting Laser) array engineered for the next generation of 3D sensing and LiDAR applications. By integrating a 16-channel linear configuration into a high-thermal-conductivity ceramic architecture, this module provides the optical power density and reliability required for mission-critical environmental mapping.
Core Advantages of VCSEL DMP1KKM
1. Advanced Thermal Management via AlN Packaging
The integration of Aluminum Nitride (AlN) ceramic packaging is a critical differentiator. Unlike standard substrates, AlN offers exceptional thermal conductivity, effectively mitigating the heat generated by high-frequency switching. This ensures minimal wavelength drift (dλ/dT) and maintains high wall-plug efficiency even during extended duty cycles in industrial environments.
2. High-Density 16-Channel Linear Topology
The linear 16-channel design allows for sophisticated optical steering and zone-based sensing. This architecture reduces the complexity of downstream signal processing by providing pre-segmented spatial data, making it highly effective for:
Edge Detection: Precision scanning for robotic arm sorting.
Obstacle Negotiation: Multi-point proximity sensing for UAVs.
Optimized 905nm Emission Profile
Operating at a peak wavelength of 905nm, the DMP1KKM strikes the optimal balance between high peak power for long-range detection and compatibility with low-cost CMOS/SPAD sensor technologies. The narrow spectral width ensures excellent signal-to-noise ratios in high ambient light conditions.
Applications of VCSEL DMP1KKM
Surveillance systems
Lidar, Autopilot
Industrial Automation: High-speed sorting, safety light curtains, and robotic volumetric sensing.
Automated Guided Vehicles (AGV): 2D/3D LiDAR illumination for navigation and collision avoidance.
Unmanned Systems: Terrain following and precision landing modules for UAVs.
Smart Infrastructure: Advanced occupancy sensing and gesture control interfaces requiring high reliability.
| Electro-optical characteristics (T =25 °C) | ||||||
|---|---|---|---|---|---|---|
| Parameter | Symbol | Test Condition | Min | Typ | Max | Unit |
| Peak Wavelength | λp | If=15A, 1.5-2 nsec pulse width, 0.03% DC | 895 | 905 | 915 | nm |
| Operating Current | If | 1.5-2 nsec pulse width, 0.03% DC | - | 15 | - | A |
| Threshold Current | Itc | 1.5-2 nsec pulse width, 0.03% DC | - | 0.4 | - | A |
| Forward Voltage | Vf | If=15A, 1.5-2 nsec pulse width, 0.03% DC | - | 20.5 | 30 | V |
| Peak Power | Φe | If=15A, 1.5-2 nsec pulse width, 0.03% DC | 40 | 70 | - | W |
| Beam Divergence (FW D86)1 | θ | If=15A, 1.5-2 nsec pulse width, 0.03% DC | - | - | 24 | Deg |
| Spectrum Bandwidth | Δλ | If=15A, 1.5-2 nsec pulse width, 0.03% DC | - | - | 3.0 | nm |
| Slope Efficiency | η | If=15A, 1.5-2 nsec pulse width, 0.03% DC | - | 4.9 | - | W/A |
| Series Resistance Ohms | Ohm | If=15A, 1.5-2 nsec pulse width, 0.03% DC | - | 0.7-0.9 | - | Ω |
| Reverse Current | IR | If=15A | - | - | 10 | uA |
1. Defined as two times the angle between the propagation direction and the radius from the beam axis containing 86% of the total emitter power.
