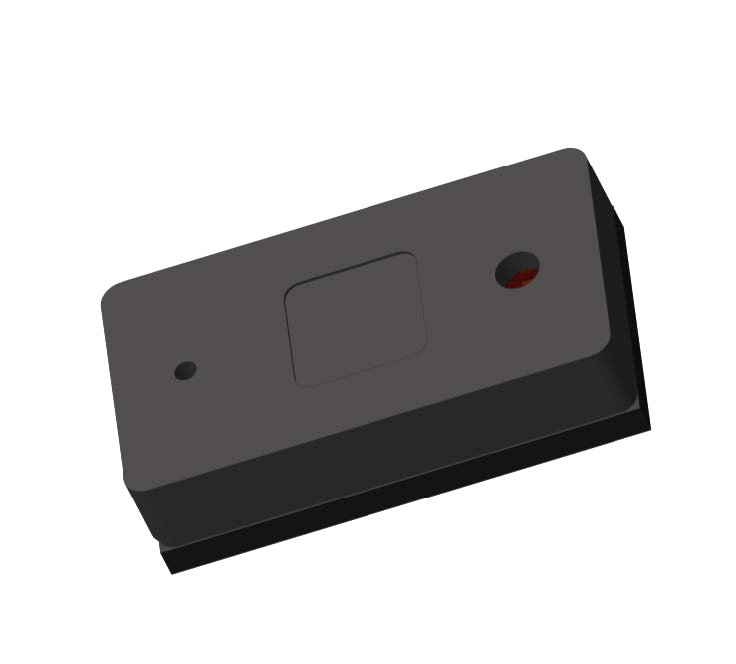

DM0301 Tiny 1D ToF Sensor (4 m Range, Class I Eye-Safe) Pin-to-Pin Compatible with VL53L4CD
Description

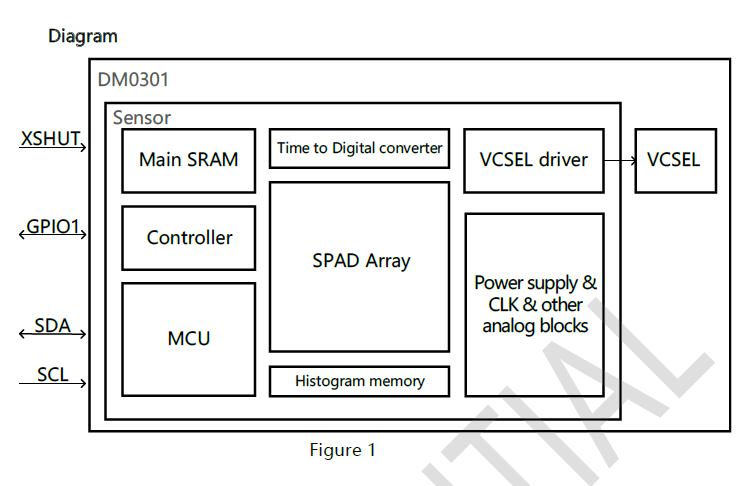

DM0301 is a next-generation, ultra-compact 1D ToF (direct Time-of-Flight) sensor designed for applications where precision, speed, and reliability truly matter. Inside its tiny footprint, DM0301 integrates a high-performance VCSEL, a sensitive SPAD array, micro lens, TDC (Time Digital Converter), and an intelligent MCU — delivering powerful depth-sensing capabilities in an exceptionally small package.
Engineered with an advanced anti-ambient light algorithm, DM0301 ensures accurate and stable distance measurements across diverse lighting conditions — reaching up to 4000 mm in low-light indoor environments, and delivering up to 1000 mm even under strong outdoor lighting.
DM0301 supports convenient firmware upgrades via I²C, enabling continuous optimization and long-term scalability.
To ensure safety without compromising performance, the module features a dedicated eye-safety controller and fully meets Class I certification standards.
Designed as a drop-in replacement for VL53L4CD, DM0301 is pin-to-pin compatible, allowing seamless integration and effortless upgrade paths for existing designs.
DM0301 brings industry-leading ToF performance to any device that demands compact size, low power, and outstanding accuracy.
Fully integrated package
- Laser and sensor integrated
- Package：Optical LGA
- Size：4.40×2.40×1.00（mm）
Main features
- Histogram algorithm embed
- Cross talk algorithm embed
- Anti-ambient light
- Cover glass calibration available
Laser eye safety
- 940nm VCSEL
- Class Icertification
Interface and others
- IIC interface
- Low power consumption
- Operation range：-20~70℃
- ROHS&REACH
Applications
The DM0301 1D ToF camera is versatile enough for a wide range of applications requiring precise depth sensing and 3D imaging capabilities:
Specification
| Parameter | Description |
|---|---|
| Distance range | 2 cm ~ 5 m |
| Accuracy | <=20mm |
| FOI (Field of illumination) | 22 deg |
| FOV (Field of View) | 25° |
| Wavelength | 940 nm |
| Size | 4.40 mm×2.40 mm×1.00 mm |
| FPS | Up to 50 Hz |
| Power supply | 3.3 V |
| Current | 0.9 mA @1 Hz, 17 mA @30 Hz |
| Interface | I2C |
| Operation temperature | -20~70℃ |
| Storage temperature | -40~85℃ |
| Laser safety | LASER CLASS 1 (IEC 60825-1: 2014) |
