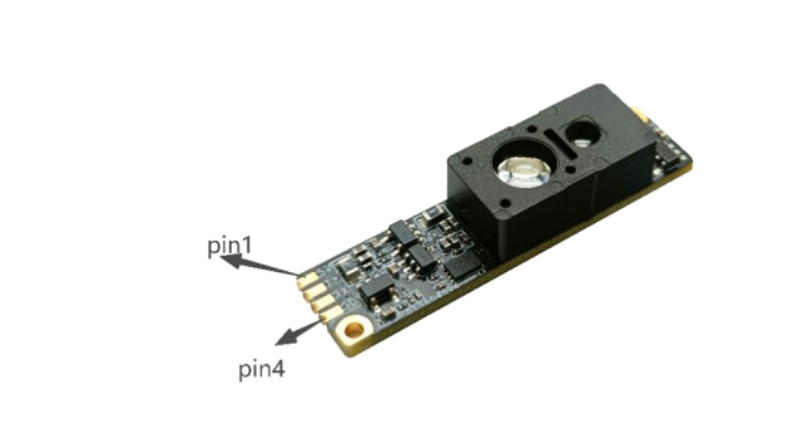

The DMS604 is a long-range industrial dToF sensor integrating a proprietary high-performance ranging SoC and specialized optical components. It achieves a detection range of up to 35 meters under intense outdoor lighting (100klux) and reaches up to 58 meters in standard lighting conditions, all while maintaining a high-speed data output of 50Hz.
The DMS604 is a long-range industrial dToF sensor integrating a proprietary high-performance ranging SoC and specialized optical components. It achieves a detection range of up to 35 meters under intense outdoor lighting (100klux) and reaches up to 58 meters in standard lighting conditions, all while maintaining a high-speed data output of 50Hz.
The product utilizes light-emitting components that comply with safety standards and ensures operational stability across a wide temperature range of -20°C to 85°C. Featuring a single power supply design and UART-based data communication, the DMS604 is easy to integrate and deploy, providing a highly reliable distance measurement solution for industrial applications.
dToF DMS604 Product Features
Proprietary dToF SoC: Integrated with a self-developed dToF SoC chip, achieving high integration without compromising on performance.
Exceptional Ambient Light Immunity: Reliable long-range performance reaching 35m @ 100klux under direct outdoor sunlight, maintaining a high 50Hz frame rate.
Universal Connectivity: Features a UART interface for data communication, ensuring broad compatibility and easy integration with various systems.
Advanced Histogram & Super-Resolution Algorithms: Utilizes statistical histogram technology combined with super-resolution algorithms to deliver high-precision results:
Precision: ≤ ±3cm (at ranges < 2.5m)
Accuracy: ≤ ±1% (at ranges > 2.5m)
Ultra-Compact SiP Design: Leverages high-integration System-in-Package (SiP) encapsulation, resulting in a compact form factor with a width as narrow as 10mm.
User-Friendly Power Management: Supports a 5V single power supply, simplifying hardware design and deployment.
DMS604 is an industrial-grade dToF sensor characterized by its long detection range, high frame rate, exceptional ambient light immunity, and compact form factor. These features enable a wide array of applications, particularly within automation scenarios that demand high precision and operational stability.
Applications:
Robotics: AGV/AMR obstacle avoidance, outdoor delivery bots.
Drones: Altitude hold, terrain following.
Industrial: Material level sensing, warehouse automation.
IoT: Smart parking, traffic monitoring, occupancy sensing.
| Parameter | Specification |
|---|---|
| Package Size | 40 × 10 × 7.7 mm |
| Interface | UART |
| Blind Zone | 5 cm |
| Power Supply | 5 V |
| Field of View (FoV) | ≤ 1.3° |
| Wavelength | 905 nm |
| Frame Rate | 50 FPS |
| Distance Range | 58 m (Indoor, 18–88% reflectivity) 35 m (Outdoor) |
| Accuracy | ±1% @ > 3 m < ±30 mm @ < 3 m |
