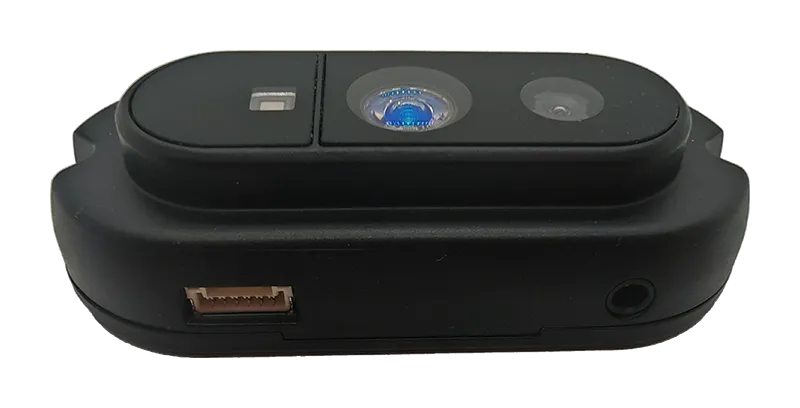

DM-RGBD5003A is a depth+RGB camera based on ToF technology to measure the distance. The system consists of 940nmVCSEL , Driver IC，ToF sensor,RGB sensor and main processor,etc.
DM-RGBD5003A is a depth+RGB camera based on ToF technology to measure the distance. The system consists of 940nmVCSEL , Driver IC，ToF sensor,RGB sensor and main processor,etc.The power supply of camera can be offered by USB interface. Depth datas(20fps) and RGB images can be got from USB2.0
Depth+RGB camera DM-RGBD5003A cooperates with unique optical, electronic and high-precision algorithms to calculate depth information, and the measurement accuracy can reach millimeter level. It is widely used in robot navigation, face recognition, somatosensory interaction, VR/AR, industrial control, etc.
| Parameter | Specification |
|---|---|
| ToF Sensor Resolution | Up to 640 × 480 @ 25 fps |
| RGB Sensor Resolution | 1280 × 960 @ 30 fps |
| Distance Range | 0.2 m – 5 m |
| Wavelength | 940 nm |
| Accuracy | ±2% @ Center 10 × 10 Pixels |
| ToF FOV (Field of View) | 64° (H) × 51° (V) |
| RGB FOV (Field of View) | 76° (H) × 61° (V) |
| Interface | USB 2.0 |
| Power Supply | USB 2.0 (5 V / 2 A) |
| Power Consumption | Average < 3.6 W @ 25 fps |
| Operating System | Windows / Linux / Android / ROS |
| Operating Temperature | -10 °C ~ 45 °C |
| Dimensions | 79 mm × 35 mm × 15.7 mm |
| Laser Safety | Class I Laser |
Whether you are sourcing ToF camera modules or looking for a complete depth sensing solution, we help you select, integrate, and optimize the right ToF technology for your application.
