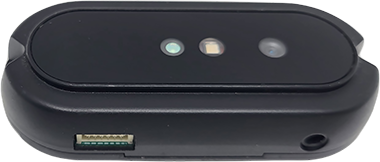

DM-RGBD5002A consists of a high performace VGA ToF and a RGB sensor.High integration,low power consumption,high precision and easy use,makes it ideal for 3D depth sensing applications.
DM-RGBD5002A consists of a high performace VGA ToF and a RGB sensor. High integration,low power consumption,high precision and easy use,makes it ideal for 3D depth sensing applications.
VGA ToF & RGB sensor DM-RGBD5002A product feature
Embeded with algorithm
Wide distance range
High robustness under sunlight
Low effect by MPI
Low temperature drift
VGA ToF & RGB sensor DM-RGBD5002A product application
Face recognition
3D reconstruction
AR/VR
Robotics navigation
Volume measurement
| Parameter | Specification |
|---|---|
| ToF Sensor Resolution | Up to 640 × 480 @ 25 fps |
| RGB Sensor Resolution | 1280 × 960 @ 30 fps |
| Distance Range | 0.2 m – 5 m |
| Wavelength | 940 nm |
| Accuracy | ±2% @ Center 10 × 10 Pixels |
| ToF FOV | 64° (H) × 51° (V) |
| RGB FOV | 76° (H) × 61° (V) |
| Size | 79 mm × 35 mm × 15.7 mm |
| Interface | USB 2.0 |
| Power Supply | USB 2.0 (5 V / 2 A) |
| Power Consumption | Average < 3.6 W @ 25 fps |
| Operating System | Windows / Linux / Android / ROS |
| Operating Temperature | -10 °C ~ 45 °C |
| Laser Safety | Class I Laser |
