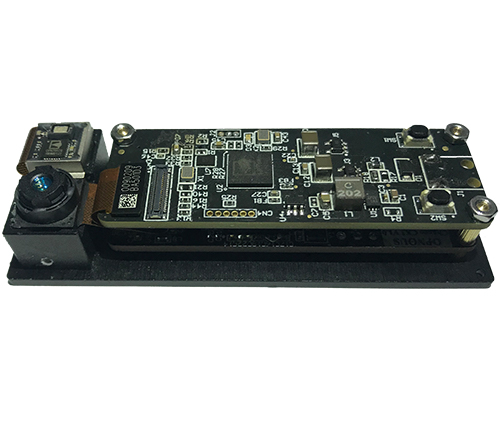

DMOM3006A

DMOM3006A

This ISP(Image signal processor) module is a high performance,low power,low cost image signal processor dedicating for ToF sensor.A sophisticated ToF DSP is embedded to convert raw data to distance and IR data.Furthermore,The module is integrated with AE(auto exposure) ,HDR and other smart functions.USB2.0 output interface is available.

CONTACT US FOR VOLUME PRICING

Description


DMOM3006A is a high performance,low power,low cost image signal processor dedicating for ToF sensor.It is embedded with a sophisticated ToF DSP to convert ToF raw data to distance and IR data.DVP,MIPI CSI-2 interface output is available.

DMOM3006A can be connected to DMOM5630A (MIPI-USB2.0 convert board）for outputing depth data via USB2.0.

Applications

DMOM3006A tof module application

ToF data process（Raw data to Depth data）



Specification



Item Description
TOF data interface Support up to 2 MIPI CSI2 Receiver @ 600Mbps (2 lanes)
Host data Interface
  • 8/12bit parallel interface with sync signal (DVP)
  • MIPI CSI2 TX interface, up to 3.2Gbps max (4 lanes)
36-bit Readout Data
  • 14 bit Distance
  • 12 bit IR
  • 8 bit Ambient
  • 2 bit flag
Real-time ISP for TOF Raw data processing and calibration
  • Region of Interest (ROI)
  • 3x3 Spatial Filter
  • Pixel calibration
  • Distance Non-linearity Correction
  • Temperature Compensation
  • FOV compensation
Smart Sensing Engine
  • Auto Exposure
  • HDR
