What is a ToF camera?

In recent years, Tof camera has been widely used in various fields, A ToF camera goes by many names. It is also referred to as ToF sensor, 3D sensor, depth camera, or even ToF 3D camera. It all depends on the wording the phone manufacturer chooses to refer to and market the technology on their devices.

A ToF camera is not a camera that can take pictures as other cameras on the phone do. Rather, it’s a tool that’s used to measure depth in a scene. ToF stands for time-of-flight, which is a reference to how the technology works.The camera has a sensor that uses light to measure how far objects are from the camera and uses that information to map out the world in 3D.

In the realms of computer vision and robotics, spatial awareness is the cornerstone of intelligent interaction, autonomous navigation, and precision measurement. Among various depth-sensing technologies, the ToF (Time-of-Flight) camera has emerged as the industry standard due to its real-time response, compact form factor, and high reliability.

This article explores the mechanics of ToF technology and introduces a professional-grade depth-sensing module—the DOMI DM5005A.

I. What is a ToF Camera?
A ToF (Time-of-Flight) camera is a device that captures 3D depth information by measuring the time it takes for a light pulse to travel from the sensor to an object and back.
How It Works
Unlike traditional RGB cameras (which capture color) or stereo cameras (which rely on disparity between two lenses), a ToF camera is an active sensing technology:
Emit Signal: The camera’s built-in light source (typically 850nm or 940nm near-infrared light) emits a light pulse.
Capture Reflection: The light hits the target surface and reflects back to a high-sensitivity pixel array sensor.
Core Advantages of ToF Camera
High Real-time Performance: It outputs a complete Depth Map at high frame rates.
Environmental Adaptability: Since it provides its own light source, it works perfectly in low-light or pitch-black conditions.
Simplified Algorithms: It outputs direct distance values, reducing the computational load on the host processor compared to complex pixel-matching algorithms.

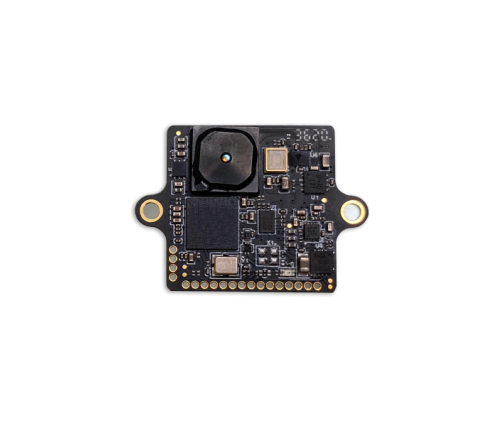

The Professional Choice: DOMI DM5005A
As 3D perception requirements evolve, developers demand higher resolution and wider fields of view. The DOMI DM5005A is a professional-grade ToF module specifically engineered for robot obstacle avoidance, people counting, and gesture recognition.
While maintaining a compact size, the DM5005A offers market-leading parameters:
1. High-Resolution Spatial Data
The DM5005A supports a physical resolution of 320 × 240 (QVGA), providing over 76,000 independent depth points in every frame.
Distance Range: 0.2 m ~ 2 m (Optimized for near-field precision).
Accuracy: Error margin is kept within ≤ 2% or ≤ 2.5 cm, ensuring safety in critical obstacle avoidance tasks.
2. Ultra-Wide Field of View (FOV)
To cover a larger detection area, the DM5005A offers flexible FOV configurations:
Standard Mode: 70° (H) × 50° (V)
Portrait Optimized: 50° (H) × 70° (V)
This wide perspective allows service robots or RVCs to detect side-approaching obstacles earlier, significantly reducing "blind spots."
3. Rapid Real-time Feedback
With a frame rate of up to 30 fps, the DM5005A ensures that depth maps remain fluid and continuous, even in high-speed applications like drone landing assistance or dynamic gesture tracking.

Core Technical Specifications of ToF Camera DM5005A

Key Application Scenarios
Thanks to the robust performance of the DM5005A, it is perfectly suited for:
Smart Warehousing: Precision obstacle avoidance and pallet recognition for AGVs.
Interactive Retail: Touchless gesture control for smart vending machines and kiosks.
Biometrics: 3D liveness detection to enhance the security of facial recognition systems.
Industrial Automation: Object counting and volume estimation on conveyor belts.
ToF cameras are revolutionizing how machines perceive the physical world. The DOMI DM5005A, with its QVGA resolution, expansive FOV, and industrial-grade stability, provides the ideal platform for everything from rapid prototyping to mass-market production.
