RGBD camera module-DM-RGBD-5001A

RGBD camera module-DM-RGBD-5001A

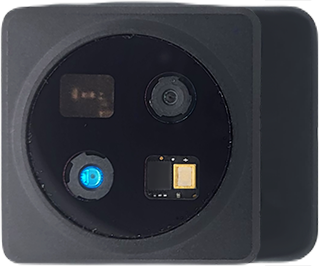

DM-RGBD-5001A with 70,000 pixel ToF sensor and 2 million pixel photosensitive RGB image sensor.

Description

DM-RGBD-5001A with 70,000 pixel ToF sensor and 2 million pixel photosensitive RGB image sensor. The RGBD camera module size can be embedded in various terminal device applications to realize the acquisition of depth data and RGB color images.
DM-RGBD-5001A camera module provides complete depth data interface and RGB image interface. user can use 5001A RGBD camera module to achieve 3D modeling, face recognition, scene recognition, gesture recognition and other functions.

Applications

RGBD camera module DM-RGBD-5001A product applications

FOV Measurement range
Obstacle Avoiding Robot
3D Modeling
People Counting
Face recognition
Gesture recognition

Specification

RGBD camera module DM-RGBD-5001A product specification

size 80mm(L)×16mm(D)×20mm(H)
Operating temperature 10℃~60℃
transmission  USB2.0
Supported  Linux/Windows10

TOF Key parameters

Sensor size 1/2.7"
Resolution 320×240
Frame rate  5~30fps
FOV  71.8°(H)×56.5°(V)
measuring range 0.3~2m
Depth accuracy Depth accuracy
Power consumption 400mW@Typical
Power supply USB 5.0V±5%@2A

RGB key parameter

Sensor size 1/2.7"
Resolution  1920*1080
Frame rate 30fps
FOV 60°(H)*43°(V)
SNR ≥40dB
HDR ≥95dB
transmission USB2.0
power supply USB 5.0V±5%@1A
Power consumption 750mW@HDR 1080P@30fp
